Straight Gear Reducer

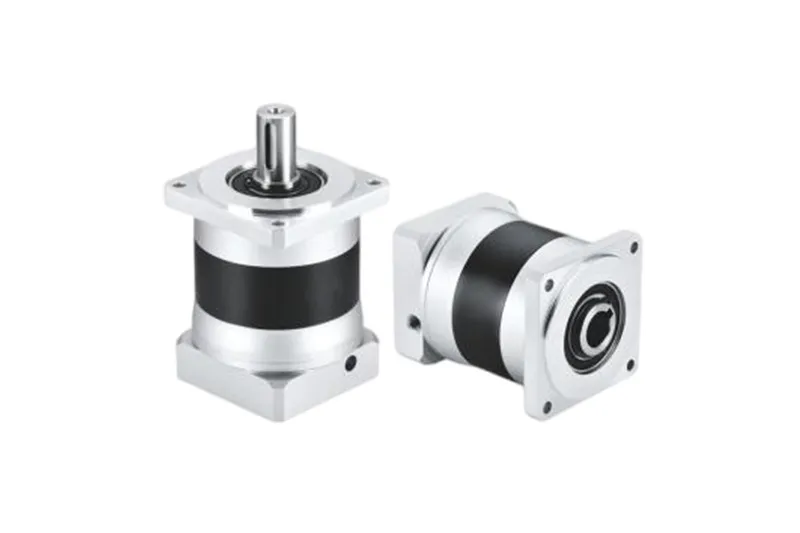

The straight gear reducer features a precision planetary gear train with coaxial input and output shafts, offering compact size and high torque output. Utilizing straight-cut (spur) gears, it delivers efficient power transmission with robust mechanical simplicity. Gears are carburized and quenched under a controlled atmosphere to achieve a tooth surface hardness of HRC58–62, while the high-strength ductile iron housing provides excellent resistance to wear and impact. With a single-stage efficiency of ≥97%, and configurable in 1–3 stages, the reducer offers a wide transmission ratio range from 3 to 250. A return clearance of ≤10 arc minutes ensures reliable positioning accuracy in cost-sensitive or high-volume automation systems.

Engineered To Perform Across Industries






Features

straight gear reducer

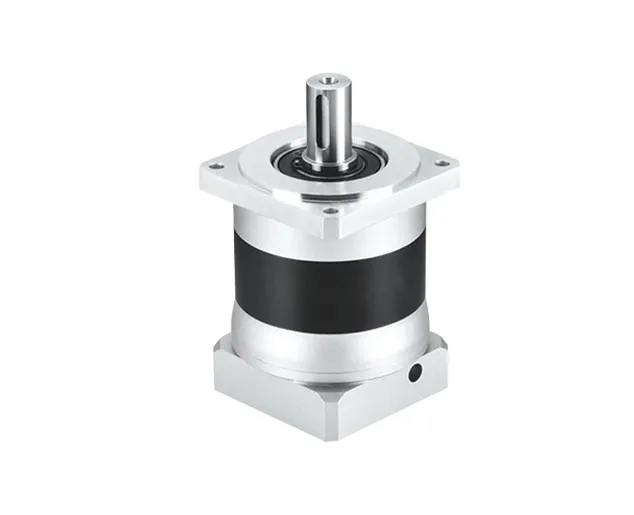

01.VGE – Shaft Output, Round Flange
Features:
The reducer adopts a modular, separation-type design for the output flange and gear ring. Both the output shaft and planet carrier utilize a single-support structure with a circular output flange.
This series offers well-balanced performance across all key parameters and can withstand both radial and axial loads, making it suitable for medium- to low-precision applications.





02.VGEK – Hollow Shaft Output, Round Flange
Features:
The reducer adopts a modular, separation-type design for the output flange and gear ring. Both the output shaft and planet carrier utilize a single-support structure with a circular output flange.
This series offers well-balanced performance across all key parameters and can withstand both radial and axial loads, making it suitable for medium- to low-precision applications.





03.VGF – Shaft Output, Square Flange
Features:
The reducer features a modular separation design for the output flange and gear ring. Both the output shaft and planet carrier adopt a single-support structure with a square output flange.
The reducer offers well-balanced overall performance, capable of withstanding moderate radial and axial loads, making it suitable for applications with medium to low precision requirements.





04.VGFK – Hollow Shaft Output, Square Flange
Features:
The reducer features a modular separation design for the output flange and gear ring. Both the hollow output shaft and planet carrier adopt a single-support structure with a square output flange.
This series delivers well-balanced performance across all key specifications, capable of handling moderate radial and axial loads, making it suitable for applications with medium to low precision requirements.





05.VGF+ - Longer Shaft Output, Square Flange
Features:
The reducer features a modular separation design for the output flange and gear ring. Both the extended output shaft and planet carrier adopt a single-support structure.
The output section is supported by two angular contact bearings and secured with a locknut to the output shaft and flange, effectively eliminating axial play. A square output flange is used.
This series delivers well-balanced overall performance and can withstand higher radial and axial loads, making it suitable for applications with medium to low precision requirements.




06.VGF+K - Extended Hollow Shaft Output, Square Flange
Features:
The reducer features a modular separation design for the output flange and gear ring. Both the extended hollow output shaft and planet carrier adopt a single-support structure.
The output section is supported by two angular contact bearings and secured with a locknut to the output shaft and flange, effectively eliminating axial clearance. A square output flange is utilized.
This series offers well-balanced overall performance and is capable of withstanding higher radial and axial loads, making it suitable for applications with medium to low precision requirements.




07.VGX42 - Square Body, Shaft Output, Square Flange
Features:
The reducer features a modular separation design for the output flange and gear ring. Both the output shaft and planet carrier adopt a single-support structure, with a square body and square output flange.
This series delivers well-balanced performance across all key parameters and is capable of withstanding moderate radial and axial loads, making it suitable for applications with medium to low precision requirements.


08.VGX142 - Square Body, Shaft Output, Square Flange
Features:
The reducer features a modular separation design for the output flange and gear ring. Both the output shaft and planet carrier adopt a single-support structure, with a square housing and square output flange.
This series offers well-balanced overall performance and is capable of withstanding moderate radial and axial loads, making it suitable for applications with medium to low precision requirements.


09.VGXK142 - Square Body, Hollow Shaft Output, Square Flange
Features:
The reducer features a modular separation design for the output flange and gear ring. Both the hollow output shaft and planet carrier adopt a single-support structure, with a square housing and square output flange.
This series delivers well-balanced overall performance and is capable of withstanding moderate radial and axial loads, making it suitable for applications with medium to low precision requirements.


10.VGH - Hollow Shaft Bearing Output, Round Flange
Features:
The reducer adopts an integrated structural design for the output flange and gear ring. The output end is supported by two tapered roller bearings, secured with a locknut to both the output shaft and integrated housing. This structure eliminates axial clearance, enhances torsional rigidity, and provides exceptional radial and axial load capacity.
The reducer offers well-balanced overall performance, capable of withstanding very high radial loads and substantial axial loads, making it suitable for applications with medium to low precision requirements.



Customized Solutions for Straight Gear Reducer
Custom planetary reducers are designed to meet the unique demands of specialized industrial applications where standard gearboxes may not be sufficient. These demands may include specific working conditions, gear ratio requirements, space constraints, or additional functional needs. Our customization process follows the steps below:
- Requirement Analysis & Consultation
- Solution Design
- Technical Evaluation
- Prototype Manufacturing
- Performance Testing & Validation
- Design Optimization (if needed)
- Customer Approval
- Mass Production
- Delivery & After-Sales Support
